DNT Optics

TNC635R - ThermNight Thermal & Night Vision Multispectral Scope with Laser Rangefinder and Ballistic Calculator

TNC635R - ThermNight Thermal & Night Vision Multispectral Scope with Laser Rangefinder and Ballistic Calculator

Regular price $3,159.99 USD
Regular price Sale price $3,159.99 USD
Sale Sold out



See it All You Will Love What You See

The ThermNight Multispectral series of scopes is the culmination of technology to create the perfect aiming solution. It can be used in all weather & lighting conditions. The thermal and night vision combination allows for faster detection of targets and provides high-quality digital image for identification.

Thermal & Night Vision Combination

Ballistic Calculator

Day & Night in All Conditions

Ultra Compact & Light Weight



High-End Thermal Sensor, Enhanced Visibility

The TNC335R features a 384 x 288 thermal sensor, while the TNC635R offers a 640 x 512 thermal sensor, delivering superior clarity with a wider field of view (FOV) for easier target detection. Both models use uncooled VOx microbolometers with a 12um pixel pitch, ≤18mk@25°C sensitivity, and a 50Hz refresh rate for optimal performance in the field.

TNC635R

Be The Ultimate Predator And See In The Dark With The Sony Starvis 2 Sensor

Starvis2 SONY Digital Sensor


Enhanced Algorithm


1920x1080 Micro-OLED


Utilization of SONY's latest CMOS Starvis2 Technology, as well as ED glass lenses, cutting edge AI imaging algorithms and a world-leading 60Hz 1920x1080 Micro-OLED display ensures the DNT ThermNight to be perfect for day or night.

Night Vision And Thermal At The Touch of a Button

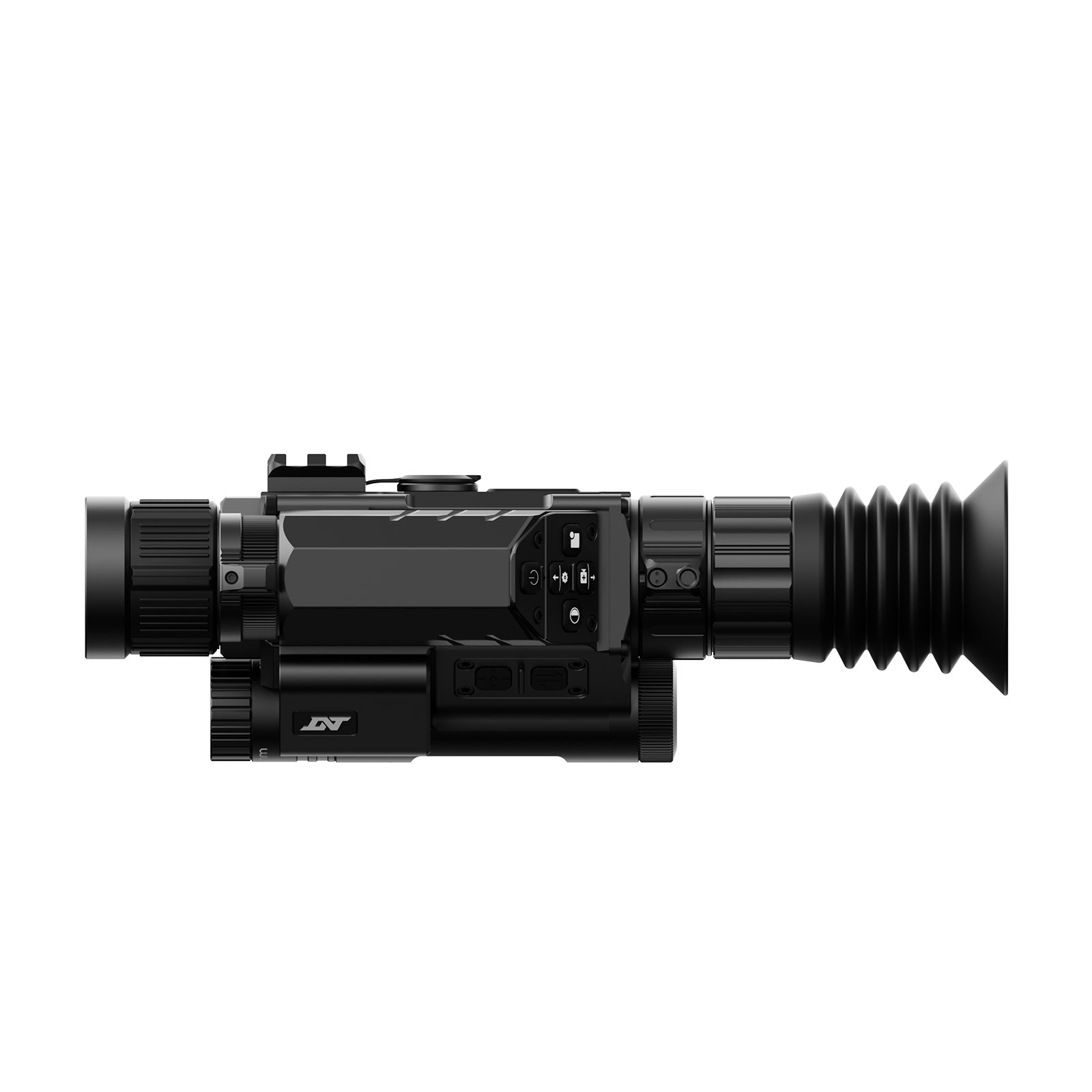

Switching between thermal and digital channels is as easy as the press of a button, conveniently positioned on the side of the scope. You can also enable Picture-in-Picture so you can see both channels at the same time, saving you time to focus on your target.

Range To Target With Instantaneous Ballistic Solution

Featuring a cutting-edge built-in laser rangefinder, this device provides highly accurate distance measurements from 5 to 1100 yards. Once the range is determined, the onboard ballistic calculator quickly generates a ballistic solution, which is then displayed as either dial-in or holdover corrections, ensuring precision with every shot.



More features

Thermal ZOOM Lock

One-shot Zeroing

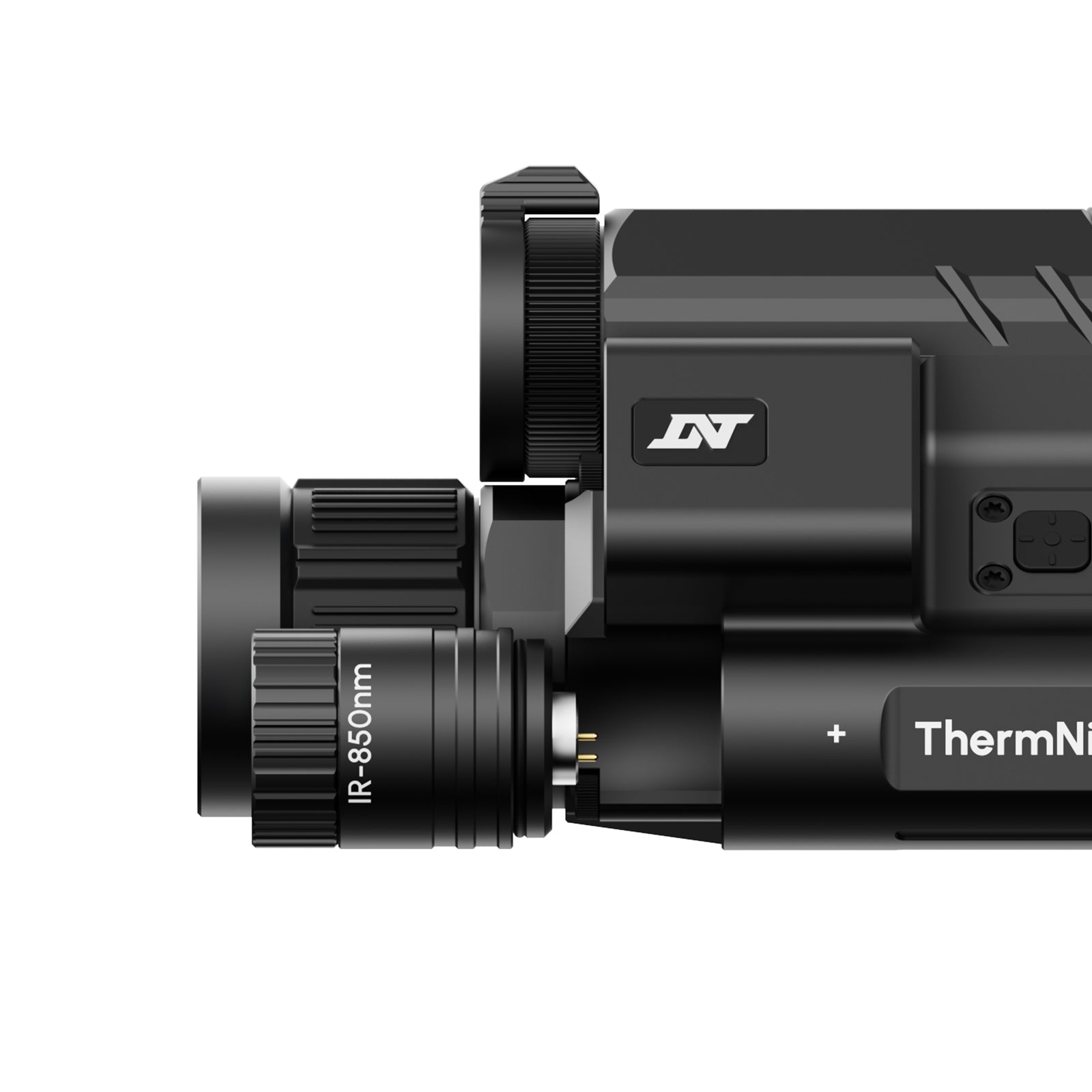

Detachable IR llluminator

Up to 5 hrs Battery Life

Built-in 64Gb Storage

Reticles: 8 Styles and 5 Colors

Precise aiming even in the Picture-In-Picture mode

Wireless Updates

Package Contents

TNC635R
×1
PMS
×1
PM20L
×1
Eye Cup
×1
Flip Up Cover
×1
21700 Flat Top Battery
×2
Charger
×1
USB Cable
×2
User Manual
×1
Lens Cleaning Cloth
×1
Scope Sunshade
×1

-TNC635R SPECIFICATIONS-

Physical Specifications


Net Weight
Dimensions
Storage
724g/25.6oz
232x82x78mm/9.2x3.2x3.0 inches
Bulit-in memory,64GB
LRF Maximum Measuring Range
WIFI/APP
Shock Resistance
5~1100M/5~1200yds
Yes(DNT)
800Gs
Ingress Protection
Operating Temperature
IP67
-20~50°C/-4°F~122°F

Display Specifications


Type
Display Resolution
Frame Rate
Micro-OLED
1920x1080 pixels
60Hz

Battery Power Supply


Battery Type
Operating Time
External Power Supply
21700 Battery(flat top)
5.5h
5V - Type C USB

THERMAL CHANNEL - Sensor Specifications


Resolution
Field of View(FOV)
Frame Rate
640x512 pixels
12.52° x 10.02°
50FPS
Base Magnification
Digital Zoom
Focal Length of Objective Lens
1.5x
1.5x, 2.25x,3x,3.75x,4.5x,5.25x, 6x
35mm
Pixel Size
NETD
Image Sensor
12x12um
≤18mk@25℃
Uncooled lnfrared lmage Sensor

VISIBLE LIGHT CHANNEL - Sensor Specifications


Resolution
Sensor Frame Rate
Video Record Resolution
1920*1080 pixels
60Hz
1800x1080 pixels

VISIBLE LIGHT CHANNEL - Optical Specifications


Detection Range
Field of View(FOV)
Eye-Relief
400m
5.31° x 2.99°
65mm
Base Magnification
Digital Zoom
Diopter Adjustment
5X
5X,7.5X,10X,12X,15X,17.5X,20X
±3D
IR Rating
IR Wavelength

Class 3R Eye Safe
850/940nm
